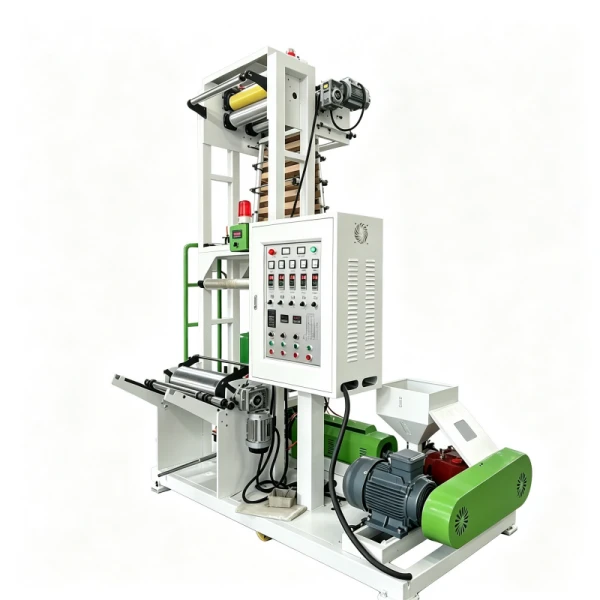

Mini All-in-one Blown Film Making Machine features an integrated base. The extruder, liftable film tower, traction and winder are combined into one unit. It saves floor area, allows easy transport and fast commissioning, ideal for small workshops and new factories. It processes LDPE, HDPE, LLDPE to make narrow-width PE films for commodity bags, lining bags and flat packaging films.
Mini All-in-one Blown Film Making Machine supports optional online corona treatment. It raises film surface tension to prevent ink peeling during printing and lamination. No extra separate corona machine is required. Integrated film blowing & surface treatment simplifies production and reduces investment.
Mini All-in-one Blown Film Making Machine is equipped with an independent control panel. Temperature, traction speed, winding tension and corona power can be adjusted separately. Frequency conversion drive ensures low noise and lower power consumption. Films come with uniform thickness and neat winding. Easy maintenance supports both mass production and small-batch trial orders.
About us
Ruian Mingfeng Machinery Co., Ltd. is a specialized manufacturer engaged in the R&D and production of plastic machinery. Our main product range covers blown film machines, plastic bag making machines, printing machines, as well as plastic recycling equipment.
Since establishment, we have kept market-oriented development and focused on technical innovation to launch continuously upgraded machine models. Supported by reliable product quality and trustworthy brand credibility, our equipment enjoys strong sales across the globe. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, South America and numerous other regions, earning consistent recognition and trust from customers worldwide.
| Model | XL-50 |
| Suitable Raw Material | LDPE, HDPE, LLDPE |
| Cooling Method | Up-blow air cooling |
| Screw Diameter | Φ50mm |
| Max Film Fold Width | 400~600mm |
| Screw L/D Ratio | 30:1 |
| Screw Speed Range | 10~100 r/min |
| Main Motor Power | 11 kW, Variable Frequency |
| Total Heating Power | 12 kW |
| Cooling Blower Power | 2.2 kW |
| Winding Motor Power | 0.75 kW |
| Max Extrusion Output | 30~40 kg/h |
| Screw & Barrel Material | 38CrMoAlA |
| Die Head Type | Center-feed die head |
| Film Thickness Range | 0.008 mm ~ 0.10 mm |
| Main Drive | Variable frequency motor drive |
| Surface Treatment | Equipped with corona treatment unit for printing-grade film |
| Haul-off System | Vertical haul-off frame with independent VF control |
| Winding Type | Friction winding with independent variable frequency control |
| Overall Dimension (L×W×H) | 2400 × 2100 × 2800 mm |
| Net Weight | 1800 kg |
| Optional Accessories | Auto web guide, double station auto change roll, rotating die head, hopper dryer |
