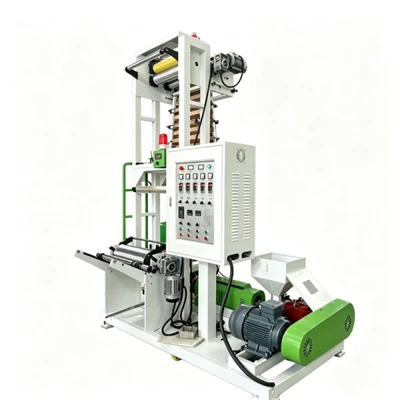

Compact Single Layer Up-blow Film Blowing Machine features an optimized vertical up-blow structure with compact layout. The extruder, film tower, traction mechanism and winding device are reasonably arranged to occupy less workshop space. The whole unit is easy to transport, install and commission. It is suitable for processing LDPE, HDPE and LLDPE raw materials to produce narrow and medium-width PE films for commodity packaging bags, inner lining films and protective films, perfectly matching the production demands of small factories and startup workshops.
Compact Single Layer Up-blow Film Blowing Machine applies mature up-blow film forming craft. With rationally matched die head and air ring, the machine maintains stable film bubble operation. The finished film has even thickness, smooth surface and tidy winding effect. The mechanical structure is simplified with fewer vulnerable parts, which lowers breakdown frequency and greatly facilitates daily inspection and maintenance for operators.
About us
Ruian Mingfeng Machinery Co., Ltd. is a specialized manufacturer engaged in the R&D and production of plastic machinery. Our main product range covers blown film machines, plastic bag making machines, printing machines, as well as plastic recycling equipment.
Since establishment, we have kept market-oriented development and focused on technical innovation to launch continuously upgraded machine models. Supported by reliable product quality and trustworthy brand credibility, our equipment enjoys strong sales across the globe. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, South America and numerous other regions, earning consistent recognition and trust from customers worldwide.
After-sales service methods
1.video phone on networkVF Net-tel
2.online instruction
3.Message: Please send us the video showing the malfunction of the machine. We will provide a solution.
Communication and coordination
1.The client needs to explain the problem in detail with patience.
2.If it can be resolved online, we will handle it directly.
3.If it is a major issue that requires investigation, we will propose a solution within 48 hours.
| Model | XL-50 |
| Suitable Raw Material | LDPE, HDPE, LLDPE |
| Cooling Method | Up-blow air cooling |
| Screw Diameter | Φ50mm |
| Max Film Fold Width | 400~600mm |
| Screw L/D Ratio | 30:1 |
| Screw Speed Range | 10~100 r/min |
| Main Motor Power | 11 kW, Variable Frequency |
| Total Heating Power | 12 kW |
| Cooling Blower Power | 2.2 kW |
| Winding Motor Power | 0.75 kW |
| Max Extrusion Output | 30~40 kg/h |
| Screw & Barrel Material | 38CrMoAlA |
| Die Head Type | Center-feed die head |
| Film Thickness Range | 0.008 mm ~ 0.10 mm |
| Main Drive | Variable frequency motor drive |
| Surface Treatment | Equipped with corona treatment unit for printing-grade film |
| Haul-off System | Vertical haul-off frame with independent VF control |
| Winding Type | Friction winding with independent variable frequency control |
| Overall Dimension (L×W×H) | 2400 × 2100 × 2800 mm |
| Net Weight | 1800 kg |
| Optional Accessories | Auto web guide, double station auto change roll, rotating die head, hopper dryer |
