Application fields:

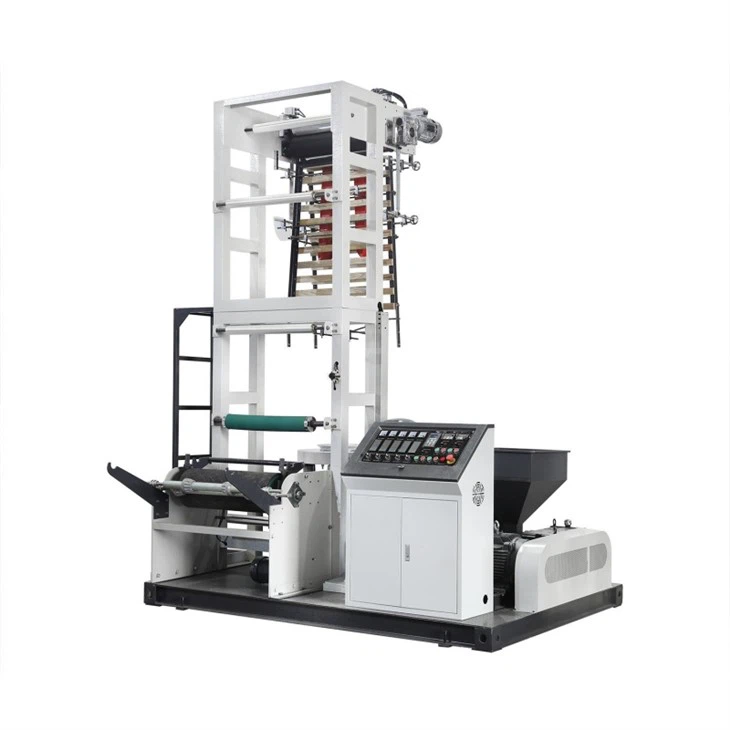

This small scale plastic film blowing machine is widely used to produce plastic films and bags for both daily use and industrial purposes, including:
Food Packaging: Bags for snacks, produce, and frozen goods.
Garment & Retail Packaging: Shopping bags, clothing covers, and lightweight merchandise bags.
Consumer Bags: Garbage bags, trash liners, and vest-type (T-shirt) carry bags.
General Packaging: Protective covers, light-duty industrial liners, and various custom packaging solutions.
The small sacle plastic film blowing machine lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 500/600mm in fold width 0.008mm.
In the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain, anti-rost, insulation oxygen, oil.
FAQ
Q: Are you machinery factory or trading company
A: We are machinery factory,and also have one trading company
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: Where is your factory located?
A: We are located Ruian City,Zhejiang Province,China From SHANGHAI by air is 40 mins,by train is 4 hours. From GUANGZHOU by air is 2 hours.
Q: How many years warranty?Can you teach us?
A: Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
Q: What's the payment method?
A: We can accepted T/T,L/C,Western Union,Moneygram and etc.
Key words:Mini Film Blowing Machine,Small Film Blowing Machine,Mini Blown Film Machine,Small Blown Film Extrusion Line,Mini PE Film Blowing Machine
| Model | 45 model | 50 model |
| Workable Materials | HDPE | |
| Max.Film Width | 500MM | 600mm |
| Max.Extrusion Output | HDPE:35kg/hr LDPE:40kg/hr |
|
| Blown Film Thickness | HDPE:0.008-0.0.08mm LDPE:0.02-0.10mm |
|
| Extrusion Unit | ||
| Hard-face Gear Case | 133 | 146 |
| Screw Diameter | Φ45mm from Zhoushan China | Φ50mm from Zhoushan China |
| Screw Material | 38 CRMOALA 38 CRMOALA |
|
| Barrel's Material | ||
| Screw L/D | 28:1 | 28:1 |
| Main Motor Power | 7.5kw from Siemens | 11kw Siemens |
| Frequency inverter | From Taiwan Delta | |
| Cylinder Cooling | 250wx1 | 250w×2 |
| Thermo Control (zone) | 2 | 2 |
| Extrusion Die | ||
| Die Size | HD:50mm | HD:60mm |
| Screen Changer | Standard Manual | Standard Manual |
| Thermo Control (Zone) | 2 | 2 |
| Air Ring(mm) | Φ470 | Φ620 |
| Cooling Blower(kw) | 1.1 | 1.5 |
| Center Steady Stick | 1 pcs | |
| Take-up Unit | ||
| Traction Roller Width | φ138×550mm | φ138×650mm |
| Embossing Roller Width | 450mm | 550mm |
| Take up Motor(kw) | 0.75 | |
| Take Up Speed | 10-80m/min | |
| Winding Unit | ||
| Rewinding Type | Surface Friction Winder ,Single Rewinder. | |
| Rewinding shaft | manual shaft or Air expanding shaft | |
| Roller Width | 550mm | 650mm |
| Winding Motor | 10N.M | 1.1kw |
| Rewinding Speed | 10-80m/min | |
| Voltage | 380V,50HZ,3PHASE | |
| Machine Dimension | 1450x2280x3200(mm) | 1450x2480x3200(mm) |
