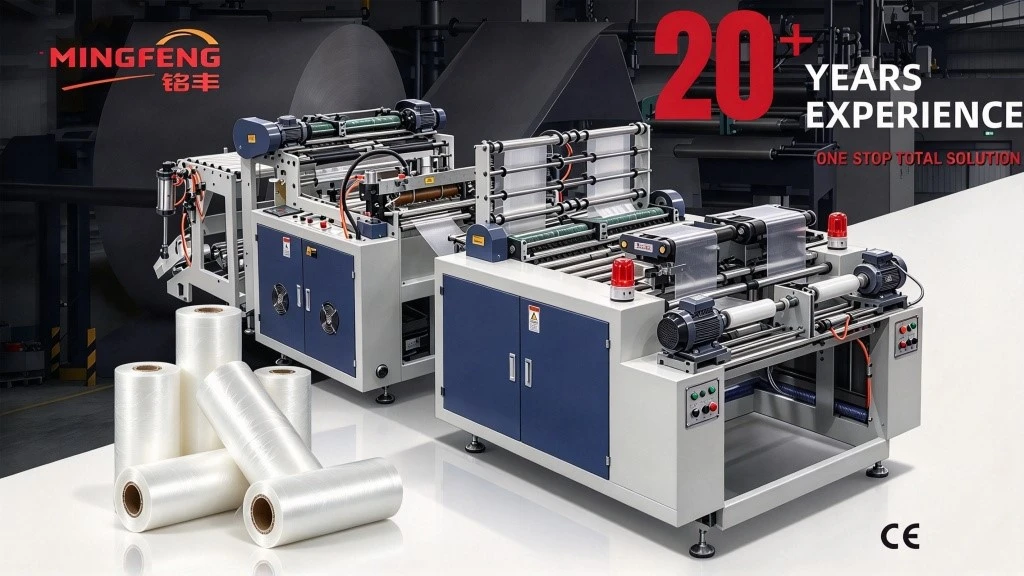

These machines are heat sealing and heat cutting bag making machine, which are suit for printing and non-printing bag making. The material of bag is HDPE, LDPE.

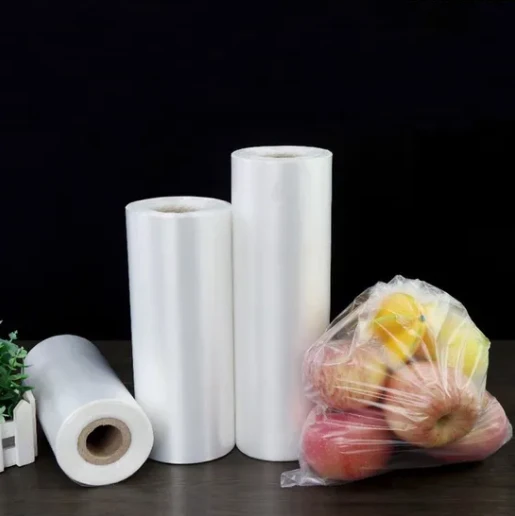

Bag-on-roll with paper&pvc core production. Its automatic film-break and core-change function help bag suppliers to improve bag making capacity and to reduce energy and man power at the most extent.Its double servo motors control system makes producing more stable. It is the best choice for making bottom sealing printed bags and blank bags.
Company Profile
Ruian Mingfeng Machinery Co., Ltd. is located in Ruian, known as China's packaging machinery city. Benefiting from the local complete supporting industrial chain, the company focuses on the research, development and assembly of plastic packaging machinery. Our product range covers bag making machines, film blowing machines and printing machines. We provide machinery and relevant technical support for domestic plastic packaging manufacturers.
| Model | MFW-500 |
| Applicable Material | LDPE, HDPE, LLDPE, Biodegradable film (PBAT+PLA) |
| Bag Width | 100 ~ 300 mm |
| Bag Length | 200-1000 mm |
| Film Thickness | 0.008 ~ 0.04 mm |
| Max Film Line Speed | 80 ~ 100 m/min |
| Running Speed | 100 ~ 300 pcs/min per channel |
| Optional Device | Automatic web guide, pneumatic roller, automatic roll change, T-shirt hole punching unit |
| Rewinding Mode | Core rewinding / Coreless rewinding optional |
| Total Installed Power | 12 ~ 16 KW |
| Power Supply | 380V, 3-phase, 50Hz |
| Control System | PLC + Touch Screen + Servo feeding system |
| Overall Dimension(L×W×H) | 3600 × 1300 × 1700 mm |
| Machine Weight | 3300 KG |
