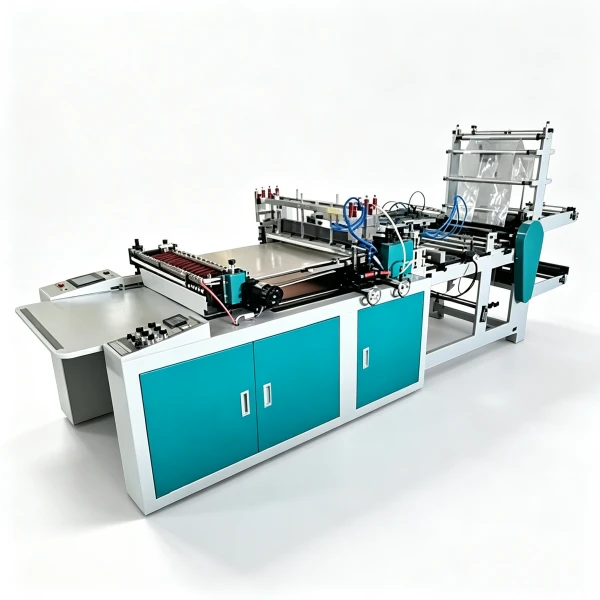

PE Ziplock Bag Making Machine

PE Ziplock Bag Making Machine

This machine is specially designed for producing LDPE plastic zipper bags (bone bags). It integrates film unwinding, side sealing, bottom sealing, fixed-length cutting and finished product delivery in one automatic process. Equipped with PLC computer control system, servo motor drive, stable running speed and accurate bag length. Pneumatic hot sealing structure ensures firm sealing edge without crack. Widely used to make packaging bags for food, hardware, jewelry, electronic accessories, daily supplies.
Send Inquiry
Description
20260728134624

PE Ziplock Bag Making Machine is professional equipment specially developed for the production of plastic self-sealing bags. This machine adopts mature forming and sealing technology, stable operation and easy operation, which can continuously complete film conveying, zipper bonding, edge sealing, cutting and finished bag output in one process.
Customers can choose different configurations according to production demands. PE Ziplock Bag Making Machine supports processing PE raw materials, producing various sizes of food packaging bags, storage bags, electronic component packaging ziplock bags. It can match optional devices such as automatic punching, waste recycling and printing synchronization to meet diversified packaging manufacturing requirements.
With reliable mechanical structure and convenient daily maintenance, our PE Ziplock Bag Making Machine enjoys stable performance and high production efficiency. It is widely favored by packaging factories, plastic product manufacturers and packaging processing enterprises around the world.



WELCOME TO OUR COMPANY
Ruian Mingfeng Machinery Co.,Ltd.

Our address

NO. 2568 Dongshan Economic Industry, Ruian, Zhejiang Province, Wenzhou, Zhejiang, China 325200

Phone Number

86-151-67807851

E-mail

mingfengmachinery@163.com

modular-1











Model MF-ZIP700
Applicable Material LDPE Film with Zipper Strip
Max Bag Width 45-500mm
Max Bag Length 600mm
Film Thickness (mm) 0.01-0.2mm
Production Speed 100-180cut/min
Control System PLC Control + Touch Screen
Driving Mode Servo Motor Drive
Sealing Type Pneumatic Hot Sealing (Side + Bottom)
Power Supply 380V / 220V, 50Hz
Total Power 4.5kw
Overall Dimension(L×W×H) 4100mm*1270mm*1710mm
Machine Weight 1300KG
