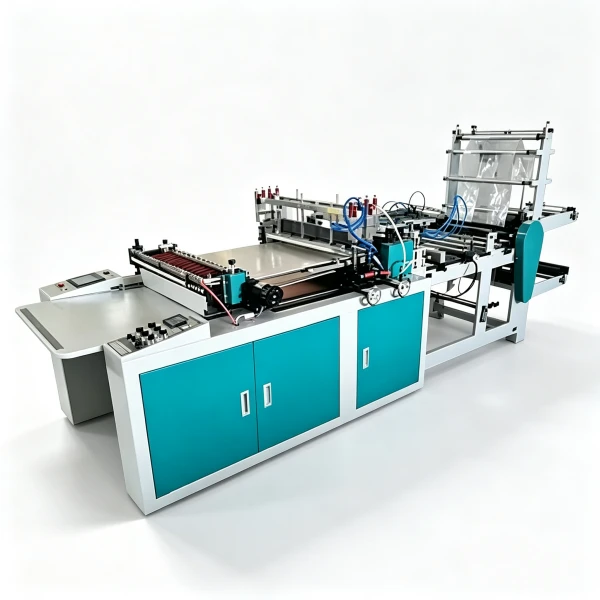

Automatic Zipper Bag Making Machine

Automatic Zipper Bag Making Machine

This machine is specially designed for producing LDPE plastic zipper bags (bone bags). It integrates film unwinding, side sealing, bottom sealing, fixed-length cutting and finished product delivery in one automatic process. Equipped with PLC computer control system, servo motor drive, stable running speed and accurate bag length. Pneumatic hot sealing structure ensures firm sealing edge without crack. Widely used to make packaging bags for food, hardware, jewelry, electronic accessories, daily supplies.
Send Inquiry
Description
20260728134624

Automatic Zipper Bag Making Machine is dedicated to processing ziplock film rolls into finished plastic self-sealing bags. It works perfectly with PE ziplock blown film machine. Equipped with automatic feeding, sealing, cutting and conveying systems, the machine can continuously produce various sizes of interlocking zipper bags with tidy sealing edges and stable finished bag quality.
High automation and easy operation make the Automatic Zipper Bag Making Machine popular among plastic packaging factories. Users can flexibly set bag length, production speed and other parameters to meet diversified order demands. The machine runs smoothly with low noise and low failure rate, greatly improving production efficiency and saving labor costs.
We adopt high-standard mechanical parts and optimized control system for the Automatic Zipper Bag Making Machine. Finished bags produced by this equipment feature neat cutting, firm sealing and beautiful appearance. It is ideal processing equipment matched with ziplock blown film production line for self-sealing bag manufacturers.



Application Scope:
This plastic ziplock bag making machine produces self sealing bags for multiple industries:

Hardware accessories packaging, food packaging, cosmetic packaging, clothing packaging, electronic parts packaging etc.









Model MF-ZIP700
Applicable Material LDPE Film with Zipper Strip
Max Bag Width 45-500mm
Max Bag Length 600mm
Film Thickness (mm) 0.01-0.2mm
Production Speed 100-180cut/min
Control System PLC Control + Touch Screen
Driving Mode Servo Motor Drive
Sealing Type Pneumatic Hot Sealing (Side + Bottom)
Power Supply 380V / 220V, 50Hz
Total Power 4.5kw
Overall Dimension(L×W×H) 4100mm*1270mm*1710mm
Machine Weight 1300KG
