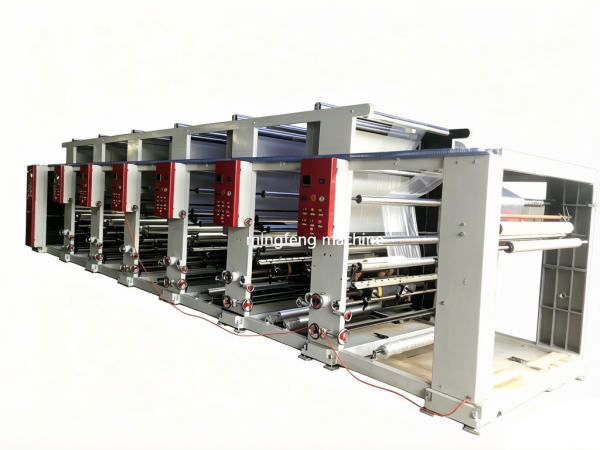

Roll To Roll Automatic Rotogravure Printing Machine (ASY-600A)

Roll To Roll Automatic Rotogravure Printing Machine (ASY-600A)

This machine is suitable for multi-colour coce-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminium foil and paper, etc.
Send Inquiry
Description

Ruian-Mingfeng-Machinery-Co-Ltd- 65

Description

Roll To Roll Automatic Rotogravure Printing Machine (ASY-600A) has a wide range of applications and can be printed on various materials. The ink used in this product is non-toxic and can meet the standards of green and environmentally friendly printing. And the ink layer is thick and the ink color is uniform, which can effectively print various different patterns and restore the original effect. This product is widely used in the beverage industry, traditional Chinese medicine preparation industry, soft packaging industry, and other fields. This product can achieve multi color continuous printing and mass printing, thereby improving printing efficiency and shortening delivery time. We have been engaged in this industry for many years, with mature technology and rich experience, so you can consult us if you have any questions.

Features
1. This product has an automatic color adjustment system to quickly and accurately correct color deviations, thereby making the printing effect closer to the original manuscript.
2. Equipped with a drying device, aimed at accelerating the drying speed of the ink to prevent it from printing to other places.
3. Equipped with stainless steel heat dissipation fins to prevent overheating of the printing machine due to continuous printing.
4. The entire Roll To Roll Automatic Rotogravure Printing Machine (ASY-600A) is made of high-quality materials to achieve good operational stability and extend its service life.

Model ASY-600A ASY-800A ASY-1000A
Printing colors 8color
Max.printing width 600 800mm 1000
Max.material width 650 850mm 1050
Max.printing speed 90-120m/min 90-120m/min 90-120m/min
Max.machine printing speed 150m/min 150m/min 150m/min
Wind and unwind roller diameter Φ800mm Φ800mm Φ800mm
Inner diameter φ76mm φ76mm φ76mm
Printing cylinder diameter φ120~φ320mm φ120~φ320mm φ120~φ320mm
Precision ±0.15mm(wholeMachine) ±0.15mm(wholeMachine) ±0.15mm(wholeMachine)
Tension control 0~25kg/FullWidth 0~25kg/FullWidth 0~25kg/FullWidth
Total power 76kw 84kw 92kw
Machine weight 19000kg 20000kg 21000kg
Machine dimension 15200X2500X2500mm 15200X2900X2500mm 15200X3100X2500mm
