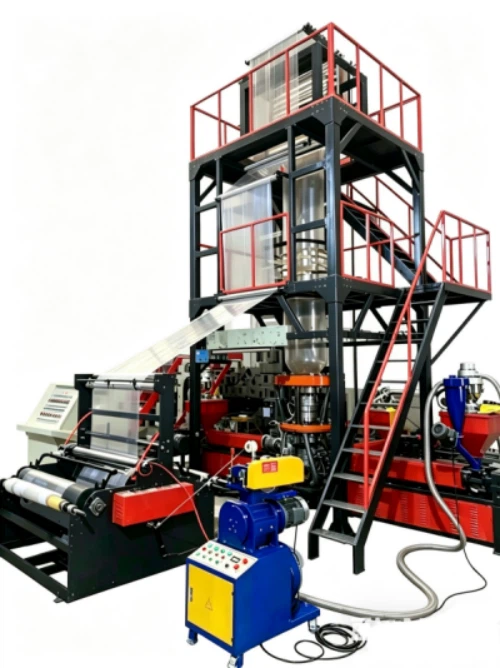

Agricultural film blowing extruder machine for greenhouse comes with a range of advanced features that set it apart from similar products on the market. Its high output rate and exceptional product quality are achieved through its advanced screw structure that delivers high-quality films with excellent mechanical strength. This makes agricultural film blowing extruder machine for greenhouse an ideal option for the production of food and non-food packaging, greenhouse films, and agricultural mulch films. Choose agricultural film blowing extruder machine for greenhouse for reliable and efficient film production.
The films produced by the ABA Film Blowing Machine are widely used in:
Greenhouse Covering: Clear and diffused films for optimal light transmission and thermal insulation
Crop Protection: Mulching films for moisture retention, weed control, and soil temperature regulation
Silage Storage: High-strength films for forage preservation and agricultural product storage
Tunnel Farming: Low-tunnel and walk-in tunnel covering materials
Agricultural Packaging: Bags and wraps for fertilizers, seeds, and harvested produce.
Ruian Mingfeng Machinery Co., Ltd. was established in 2020 and is committed to the development and production of environmentally friendly bag making equipment. Provide customers with professional technical consultation, installation and commissioning, training and operation, and a whole set of professional service system.
As a manufacturer of bag making machines serving the world, we always put quality innovation first, from R&D design, parts procurement, assembly production, quality inspection and evaluation, sales to after-sales and other systems, to truly meet customer needs
Offer bag-making machines with the best quality and solutions.
1. Designing upon customer's project requirements.
2. Complete solutions from A to Z depending on your bag-making machine.
3. Drawing of machines and layout.
4. Machine proceeds to manufacture.
Professional and dedicated after-sales service.
1. Pre-shipment testing
2. Delivery to customer factory.
3. Phone services for the consumers' requirements on assembling products;
4. The video instructs the consumers on how to get the heaters to work or other problems.
Ruian Mingfeng Machinery Co.,Ltd.
Our address
NO. 2568 Dongshan Economic Industry, Ruian, Zhejiang Province, Wenzhou, Zhejiang, China 325200
Phone Number
86-151-67807851
mingfengmachinery@163.com
Main Technical Parameter:
| Workable Materials | LDPE/LLDPE/HDPE |
| Max.Film Width | 1100mm |
| Max.Extrusion Output | LDPE:140kg/hr |
| Blown Film Thickness | LDPE:0.03-0.15mm |
| Gear Box | 146/173/146 |
| Screw Diameter | Φ50/Φ55/Φ50 from Zhoushan China |
| Screw Material | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA |
| Screw L/D | 30:1 |
| Main Motor Power | 15KW/22KW/15KW FROM CHINA SHANGHAI CONTROL BY INVERTER |
| Cylinder Cooling | 370WX2X2 |
| Thermo Control (zone) | 3 |
| Die Size | LD:¢200MM |
| Die Rotary Device | 360°Continue Rotary |
| Screen Changer | Standard Manual |
| Thermo Control (Zone) | 3 |
| Air Ring(mm) | 1 pc DOUBLE LIP AIR RING 1000 |
| Cooling Blower(kw) | 7.5KW CONTROL BY INVERTER |
| Traction Roller Width | φ150×1100MM CONTROL BY CYLINDER |
| Take up Motor(kw) | 2.2KW CONTROL BY INVERTER |
| Take Up Speed | 5-30m/min |
| Winding Unit | |
| Rewinding Type | Surface Friction Double winder (back to back winder) |
| Roller Width | 1300mm |
| Winding Motor | 1.5kw |
| Rewinding Speed | 5-30m/min |
| Voltage | 380V,50HZ,3PHASE |
| Machine Dimension | 6800x2600x6500mm |
