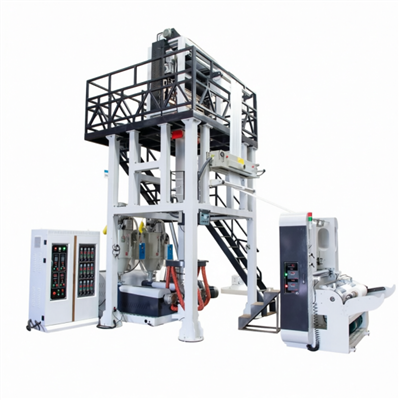

3 layers ABA co-extrusion film blowing machine enjoys advantages in producing HDPE, LDPE and LLDPE material. The strength of plastic film is improved by co-extrusion. Besides, with only two extrusion units, this model achieves function of three layer film blowing machine. One unit deals with inner&outer layer, while the other deals with inner stuffing layer. In this way, costs are reduced and energy is saved. Meanwhile, to enhance market competitiveness of customers, it's possible to add recycled material and CACO3 into inner puffing layer at the rate of 80% of full amount.
Description
3 Layers ABA Co-Extrusion Film Blowing machine has the advantages of higher output, good plasticization of products, low energy consumption and easy operation. This kind of film can be widely used for light and heavy packaging due to its good barrier, freshness preservation, moisture-proof, frost-proof, and oxygen barrier and oil resistance. Such as all kinds of fresh fruits, meat food, pickles, fresh milk, liquid drinks, medical supplies, etc.
Its extruder is equipped with an extruder with the forced feedstock function, precision double vents air ring, horizontal rotation and traction system, full-automatic surface-friction double-cut and double winders, and computer-centralized-control system, etc. to meet customers' requirement for high-quality and high-output film blowing equipment. Compared with similar equipment, this unit has advantages such as more compact structure, higher output, higher-quality production, less energy consumption, and easier operation. It can be widely used for manufacturing different packaging films with high transparency, to create a considerable economic benefit for you.
Features
1. The machine has good performance in impact resistance, bending resistance, and temperature resistance, therefore its service life is very long.
2. High quality steel provides the machine with good firmness and hardness to achieve excellent bending and impact resistance.
3. This machine can produce plastic bags in large quantities to improve production efficiency and shorten delivery time.
4. The bags produced by 3 layers aba co-extrusion film blowing machine have many properties, such as high toughness and high waterproofing.
Product Description:
| Workable Materials | LDPE/LLDPE/HDPE |
| Max.Film Width | 1100mm |
| Max.Extrusion Output | LDPE:140kg/hr |
| Blown Film Thickness | LDPE:0.03-0.15mm |
| Gear Box | 146/173/146 |
| Screw Diameter | Φ50/Φ55/Φ50 from Zhoushan China |
| Screw Material | 38 CRMOALA |
| Barrel's Material | 38 CRMOALA |
| Screw L/D | 30:1 |
| Main Motor Power | 15KW/22KW/15KW FROM CHINA SHANGHAI CONTROL BY INVERTER |
| Cylinder Cooling | 370WX2X2 |
| Thermo Control (zone) | 3 |
| Die Size | LD:¢200MM |
| Die Rotary Device | 360°Continue Rotary |
| Screen Changer | Standard Manual |
| Thermo Control (Zone) | 3 |
| Air Ring(mm) | 1 pc DOUBLE LIP AIR RING 1000 |
| Cooling Blower(kw) | 7.5KW CONTROL BY INVERTER |
| Traction Roller Width | φ150×1100MM CONTROL BY CYLINDER |
| Take up Motor(kw) | 2.2KW CONTROL BY INVERTER |
| Take Up Speed | 5-30m/min |
| Winding Unit | |
| Rewinding Type | Surface Friction Double winder (back to back winder) |
| Roller Width | 1300mm |
| Winding Motor | 1.5kw |
| Rewinding Speed | 5-30m/min |
| Voltage | 380V,50HZ,3PHASE |
| Machine Dimension | 6800x2600x6500mm |
We are Film Blowing Machine manufacturer from china, our business is mainly to produce and sell different type Film Blowing Machine, We also can customized product according to the client's requirement. We are always try our best to become the good Film Blowing Machine manufacturer, Welcome the customer from all over the world to contact with us. If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
Packaging & Shipping:
FAQ:
1.Q:Are you machinery factory or trading company
A:We are machinery factory,and also have one trading company
2.Q:Where is your factory located?
A:We are located Ruian City,Zhejiang Province,China
From SHANGHAI by air is 40 mins,by train is 4 hours.
From GUANGZHOU by air is 2 hours.
3.Q:How many years warranty?Can you teach us?
A:Usually,we given customer one year warranty time.We also have oversea technician service to help you install the machines.
4.Q:What's the payment method?
A:We can accepted T/T,L/C,Western Union,Moneygram and etc.
