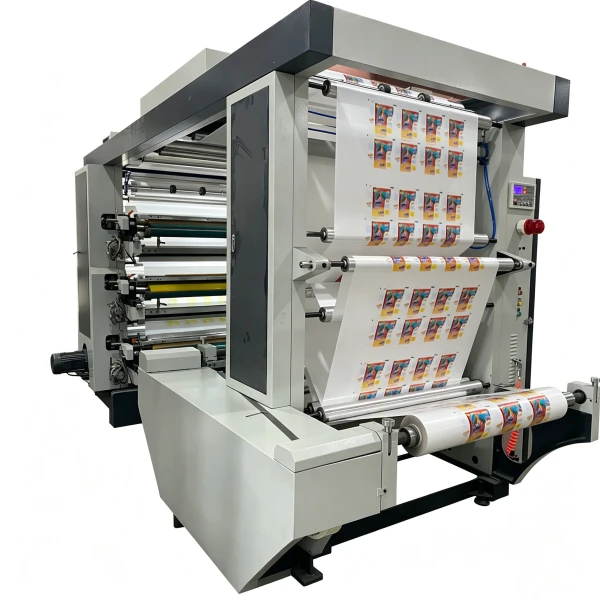

6 Color Stack Flexographic Printing Machine adopts flexible relief rotary printing. Six independent printing units are arranged in a vertical stack. The roll substrate travels continuously and vertically through each station for layer-by-layer color registration. Each color is dried before the next color printing, and full-color graphics are formed by overprinting.
This 6 Color Stack Flexographic Printing Machine is equipped with independent anilox roller, flexible plate cylinder and impression roller for every printing unit. The roll substrate travels continuously and vertically through six independent vertically stacked flexographic printing units. Each unit applies metered ink via an anilox roller and transfers one color through a flexible relief plate. Hot-air drying is arranged between color stations to avoid ink smudging. Six colors are overprinted layer by layer, and finished materials are finally rewound.
Compared with CI-type flexo printers, the 6 Color Stack Flexographic Printing Machine occupies less floor space and supports convenient double-sided printing. It can handle various roll substrates including plastic film, paper cup paper, non-woven fabric and packaging paper, widely used in food packaging bags, shopping bags, labels and disposable packaging products.
About us
Ruian Mingfeng Machinery Co., Ltd. is a specialized manufacturer engaged in the R&D and production of plastic machinery. Our main product range covers blown film machines, plastic bag making machines, printing machines, as well as plastic recycling equipment.
Since establishment, we have kept market-oriented development and focused on technical innovation to launch continuously upgraded machine models. Supported by reliable product quality and trustworthy brand credibility, our equipment enjoys strong sales across the globe. Our products have been exported to Russia, Southeast Asia, the Middle East, Africa, South America and numerous other regions, earning consistent recognition and trust from customers worldwide.
| Name | MF-BT1200 |
| Max. Web Width | 1200 mm |
| Max. Effective Printing Width | 1150 mm |
| Printing Color Units | 6 colors |
| Printing Repeat Length | 300~1000 mm |
| Mechanical Running Speed | 10~100 m/min |
| Register Accuracy | ±0.1 mm |
| Substrates | BOPP, PE, CPP, PET film, kraft paper, non-woven fabric, aluminum foil, laminated flexible packaging film |
| Applicable Inks | Water-based ink (standard); solvent-based / UV ink optional |
| Plate Thickness | 2.38 mm (common flexible photopolymer plate) |
| Anilox Roller | Ceramic anilox roller (chrome-plated roller optional) |
| Max. Unwind Roll Diameter | Φ450 mm (Φ600 large roll optional) |
| Max. Rewind Roll Diameter | Φ450 mm (Φ600 large roll optional) |
| Main Drive | Inverter motor + gear transmissio |
| Drying System | Independent hot air drying tunnel for each color unit |
| Power Supply | 380V/50Hz/3P |
| Total Installed Power | Approx. 22~30 KW (including drying blowers) |
| Overall Dimension (L×W×H) | 4300 × 2100 × 2500 mm |
| Net Weight | Approx. 5200 kg |
| Optional Accessories | Web guide system, ink circulation pump, double-side printing device, UV curing system, static eliminator |
