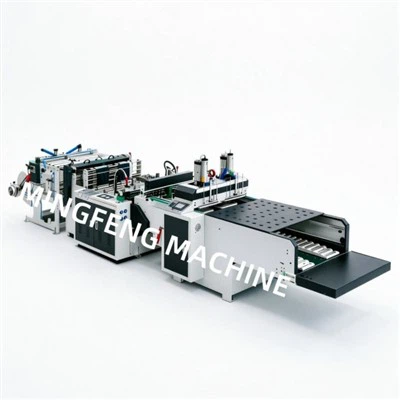

Stand Pouch Ziplock Bag Making Machine Introduction:
This machine is excellently processed and assembled, with an aesthetically pleasing appearance and rational structure. The whole machine operates stably with low noise, features convenient zipper adjustment, accurate punching for stand-up bags, and high operating speed. It adopts PLC with four-servo traction control and computer-centralized temperature control, reducing power consumption. The main unwinding and dual stand-up gusset feeding utilize constant tension control, ensuring stable material feeding and accurate gusset punching. The mid-section tension floating roller adopts a dynamic compensation mode, minimizing vertical fluctuations during material feeding and achieving stable mid-section tension control. The transverse sealing and curved bottom hot knife for stand-up bags demonstrate excellent impression overlap consistency and stability.
Function: Three side bag,Middle-side (gusset) sealing Bag
Main Electric Device: Two Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 14 Road, Tension control unwinding.
Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
Max working speed: 150 times/min (For gusset bag about 120 times/min)
Max unwinding line speed: ≤38 meter/min (subject to base material)
Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)
Max width of bag: 600mm
Max size of roll material: φ600×1250mm(Diameter×Width)
Location precise: ≤±0.5mm
Heating sealing knife quantity: 4 set Longitudinal Knife, warming and cooling up and down.
Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
Temperature electric heating quantity: 12 piece.
Temperature range: 0~300ºC
Total Power: 30Kw (Starting power is about 25kw, in condition of keeping warm, power is about 20kw)
Overall dimension: 10500×1700×1950mm(L×W×H)
Net weight: About 5500 kg.
Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.
OUR ADVANTAGES :
1. We're the manufacturer, we have the factory to make all different products.
2. We can offer competitive. Each of our customer can enjoy oversea service and one-year quality guaranteeing under normal operation.
3. Before shipment, each machine will tested and take clear videos to our customer.
4. We can make the machines following your request and if your need is urgent, we can work day and night.
