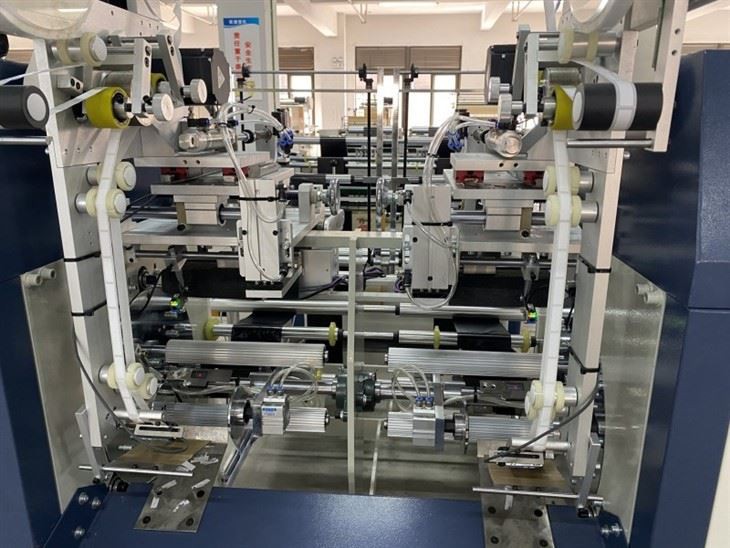

Automatic Star Seal Carrier Bag Making Machine is specifically designed for high efficiency production of star seal bottom carrier bags. Coreless roll bag machine equipped with a servo driven control system and a precise heat sealing mechanism, the machine ensures consistent star shaped seals that offer excellent load bearing capacity for heavy duty carrier bags. It features automatic film feeding, bag forming, bottom sealing, perforating, and counting. The star seal design eliminates weak points found in conventional side seals, making the bags ideal for grocery retail, supermarket carry bags, and bulk packaging applications. Coreless star seal bag making machine with a user friendly HMI touch screen, the roll garbage bag making machine supports quick size changeovers and operates at high speeds while maintaining seal integrity and low maintenance requirements.
Functional Features of Automatic Star Seal Carrier Bag Making Machine
1. The entire process is controlled by a PLC computer, making the operation intuitive.
2.Equipped with a dedicated star seal knife and a specially designed punching knife, it can achieve a unique star-shaped bottom sealing structure.
3.From the film roll to the finished bag, it is completed in one go, with the entire process of bag making, bottom sealing, punching, winding and changing being automated.
4.Star seal roll bag machine each line is independently equipped with an EPC deviation correction system to automatically correct the deviation of the film.
5.The fully automatic "non-stop" winding and changing cycle automatically changes and unrolls when the preset count is reached.
PACKAGING AND TRANSPORTATION
The equipment adopts a packaging solution of fully wrapped with PE stretch film and fixed with wooden pallets. This design effectively protects the equipment from dust, scratches and minor impacts during storage and transportation, ensuring the equipment's appearance and core components remain intact.
From the warehouse storage of the factory to the transfer by forklifts, to the loading onto vehicles, and finally to the sealing of the containers, the entire process adheres to the specifications for transporting heavy equipment. Combined with the fixed devices of the transportation vehicles, it minimizes the impact of transportation jolts on the equipment to the greatest extent.
| Model of machine | MFG-400*2 |
| Speed of bag making | 30-190 bags/min each lines |
| Max speed of film | 120m/min |
| Length of bag making | 100-1200mm |
| Width of bag making | 60-300mm |
| Thickness of bag making | 0.005-0.015mm |
| Bag making methods | star sealing garbage bag |
| Control system of machine | PLC |
| Material feeding | 4pcs of 370w AC motor with inverter control |
| Bag length control | 2pcs of 2kw servo motor |
| Temperature control zones | solid relay heating |
| Temperature control precision | ±2 °C |
| Heating power | 2kw |
| Traction part | 2pcs of 370w AC motor with inverter control |
| Power of winding motor | 2pcs of 370w AC motor with inverter control |
| Turntable control | Reducer motor control |
| HMI | Touch screen control |
| Total power of machine | 12kw |
| Dimension of machine | 6200*1800*1800mm |
